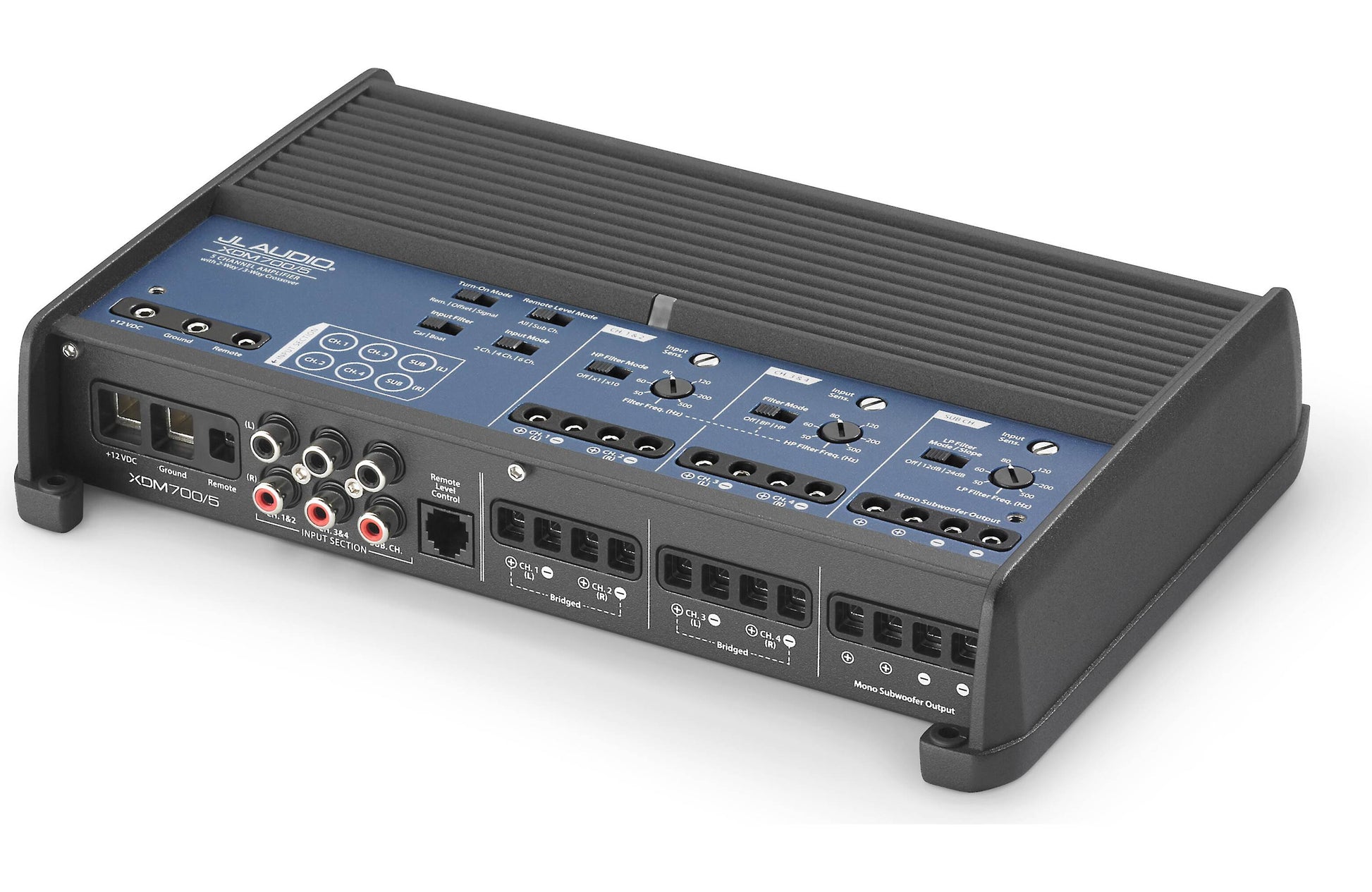

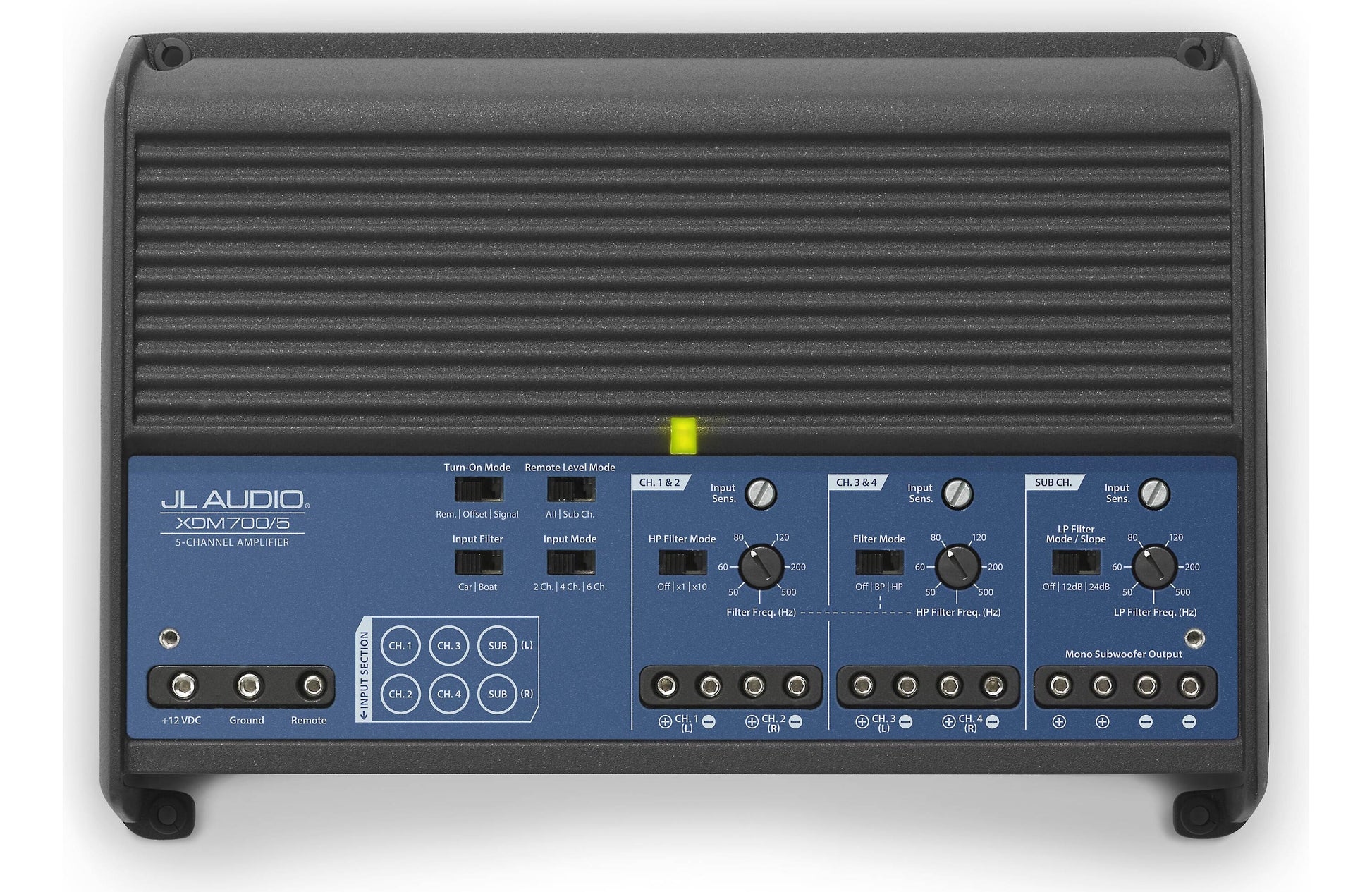

JL AUDIO M700/5 5-channel marine amplifier

JL Audio's M700/5

JL Audio's M700/5 5-channel marine amp is small — less than 11" wide — but it delivers a massive amount of power from its compact chassis — up to 100 watts from each of its front and rear channels, plus up to 300 watts from the subwoofer channel. It owes these impressive specs to JL Audio's Class D NexD™ ultra-high-speed switching design, which eliminates the traditional drawbacks of a Class D amp design to deliver full-bandwidth performance, excellent efficiency, and very low distortion levels.

Great for a variety of applications

JL Audio designed this 5-channel amp to drive a complete marine audio system, running two sets of high-performance coaxial or component speakers, and powering up a sub at the same time with fifth channel. The special powder-coat finishes, the gasketed control cover, and the stainless-steel hardware all protect this amp against the harsh realities of the marine environment. The built-in variable frequency filters offer high- or low-pass modes depending on the channels, so you can tailor the output to meet your system's needs.

Optional Remote Level Control sold separately.

Product highlights:

• 5-channel marine amplifier
• 75 watts RMS x 4 at 4 ohms + 180 watts RMS at 4 ohms
• 100 watts RMS x 4 at 2 ohms + 300 watts RMS x 1 at 2 ohms
• 200 watts RMS x 2 bridged at 4 ohms + 300 watts RMS x 1 at 2 ohms
• Class-D design
• white and gray powder-coat finishes, gasketed control cover, and stainless steel hardware
• variable high-pass filter on front channels (50-5000 Hz, 12 dB per octave)
• variable high- or bandpass filters on rear channel (50-500 Hz, 12 dB per octave)
• low-pass filter on subwoofer channel (50-500 Hz, 12 or 24 dB per octave)
• optional wired remote level controller not included ( Model # HD-RLC sold separately )
• preamp-level inputs
• 4-gauge power and ground leads recommended — wiring and hardware not included with amplifier
• 10-1/4"W x 2-1/16"H x 7-1/8"D
