JL Audio

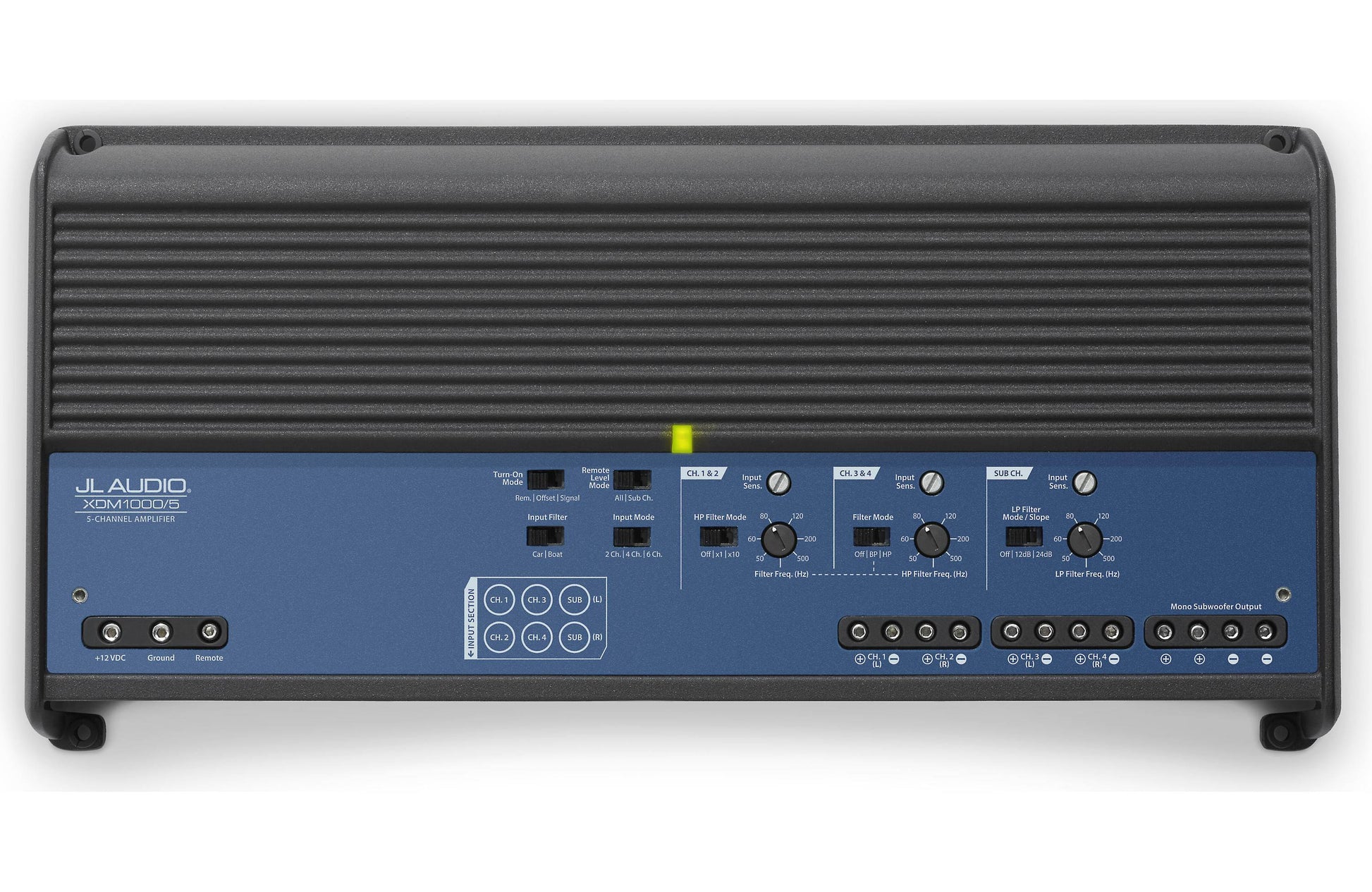

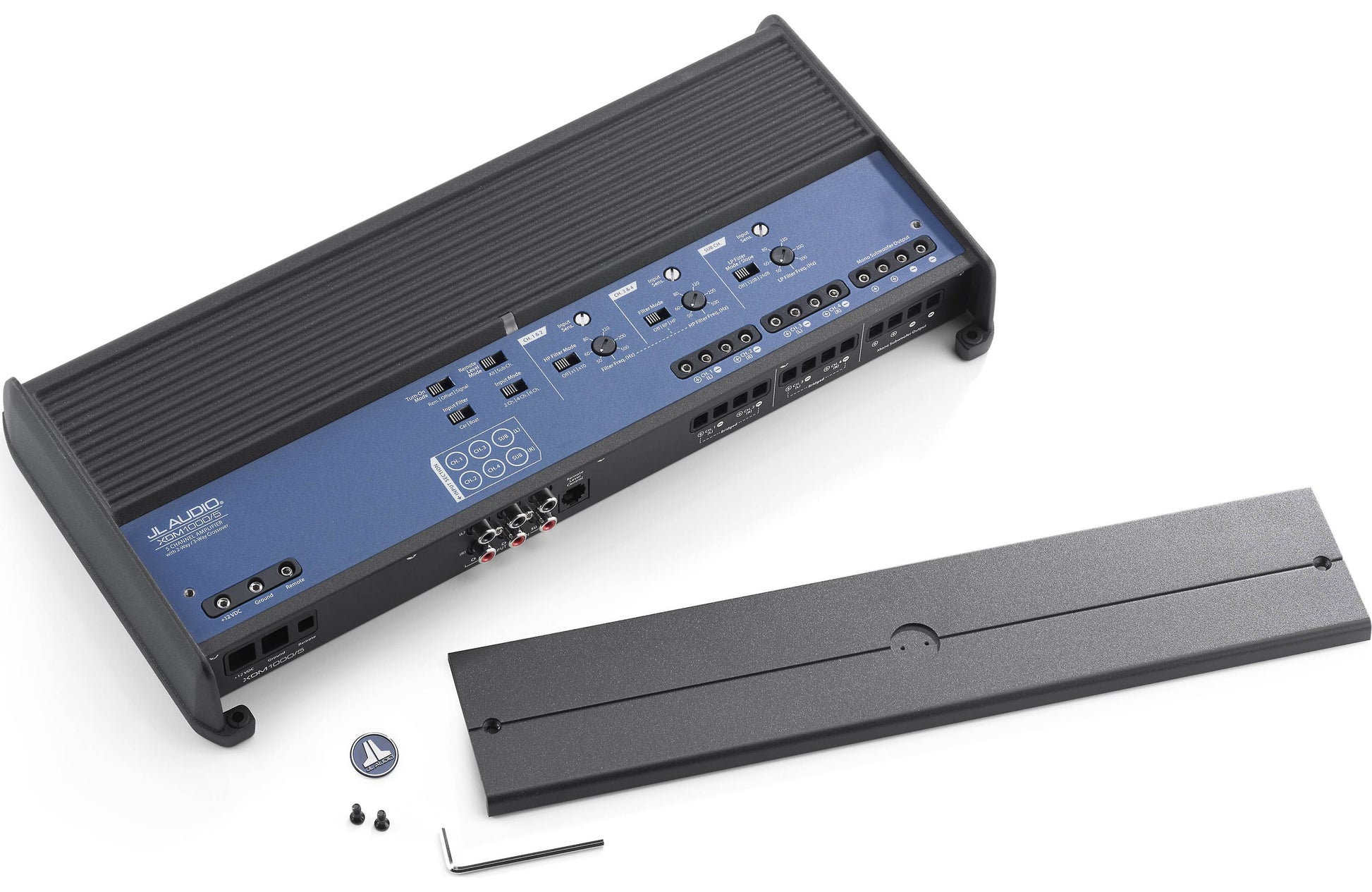

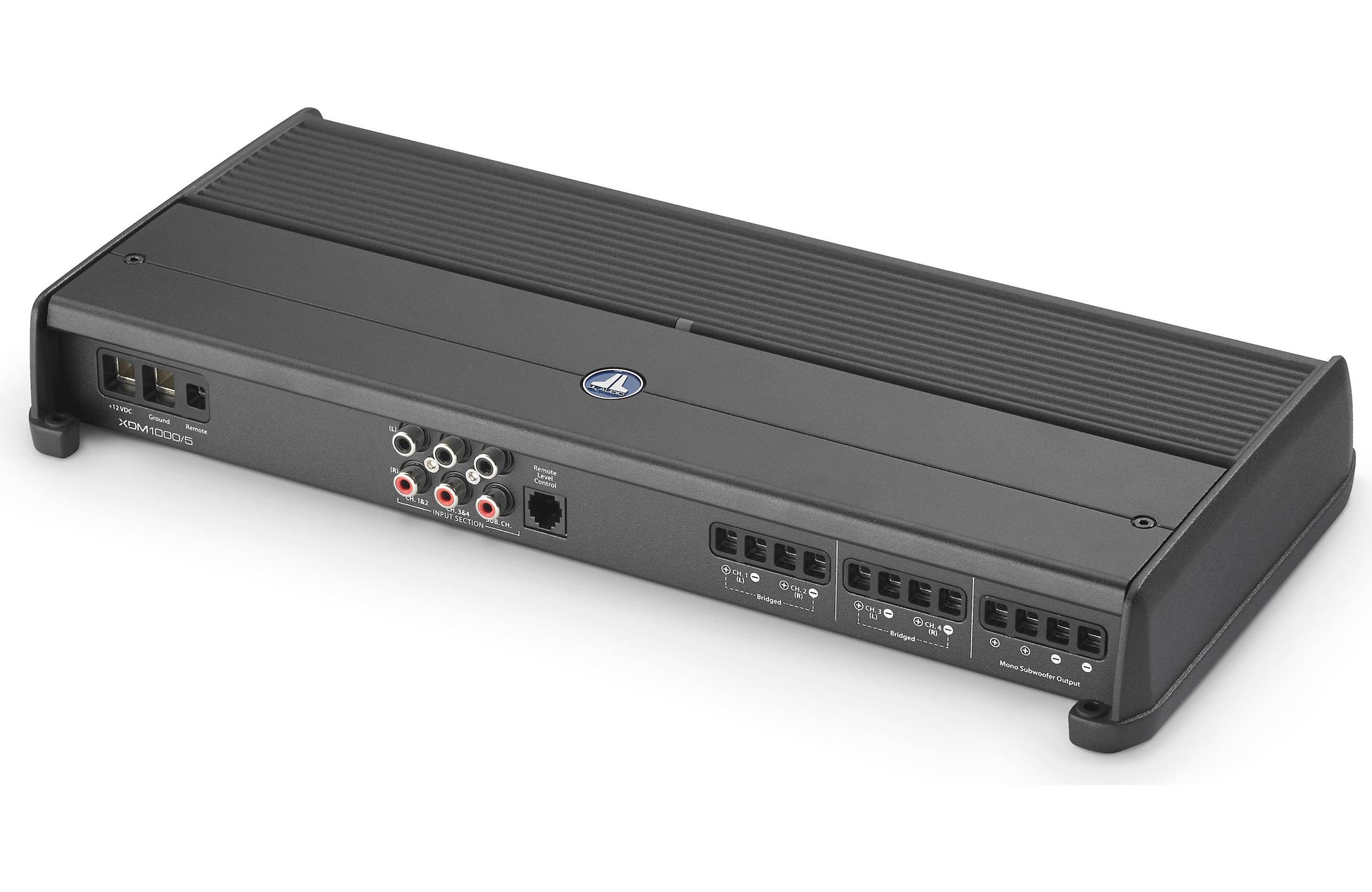

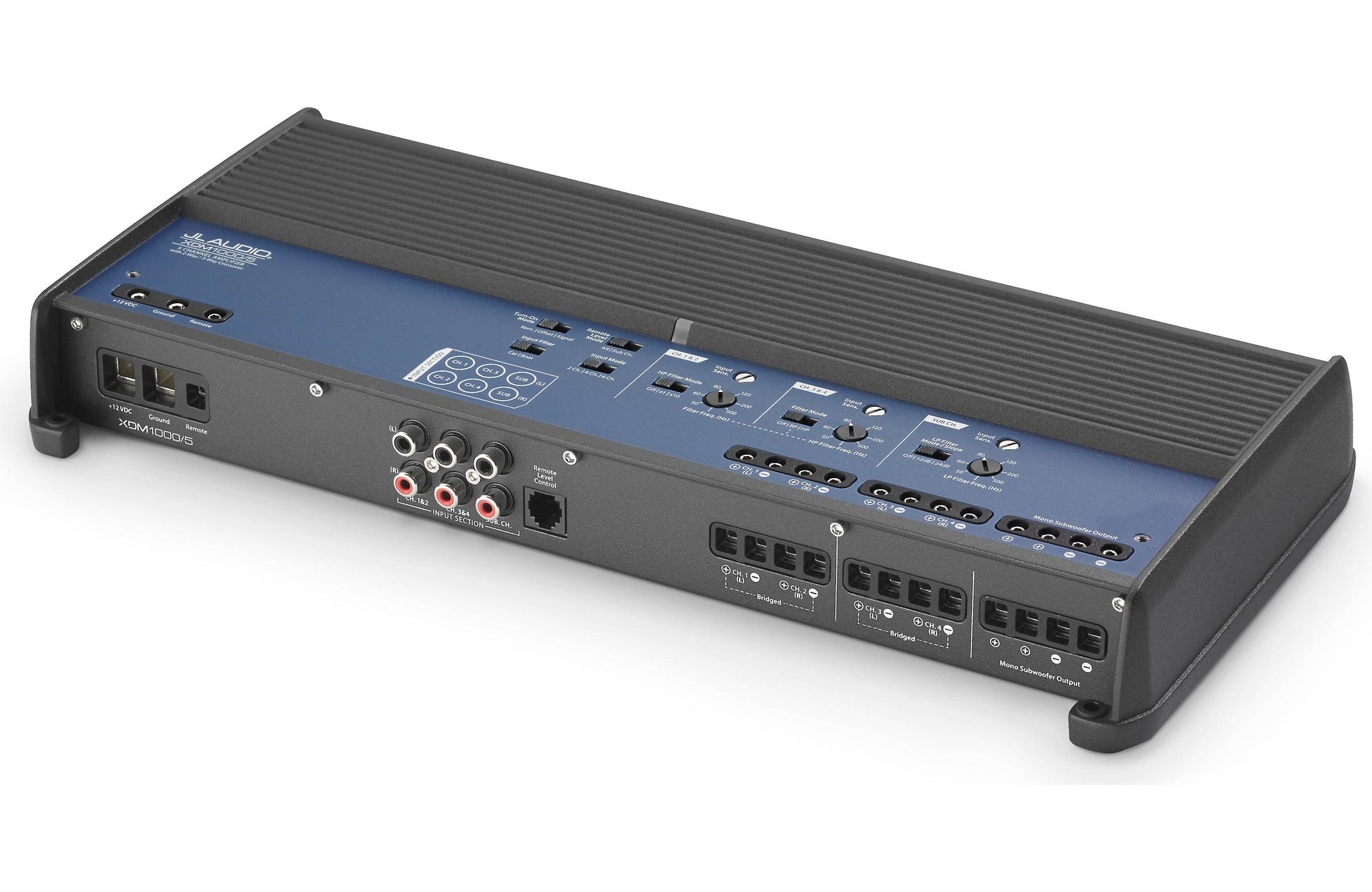

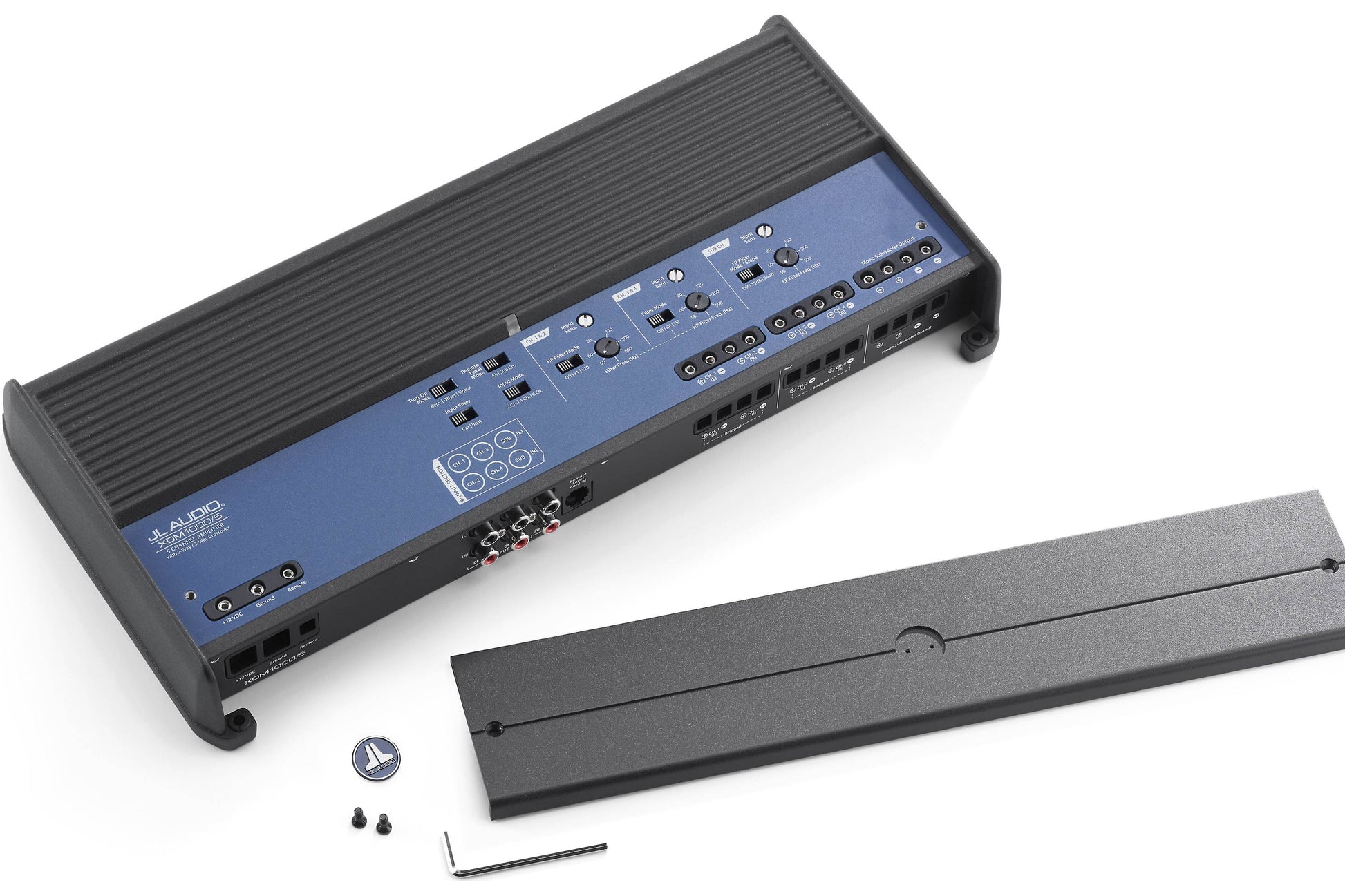

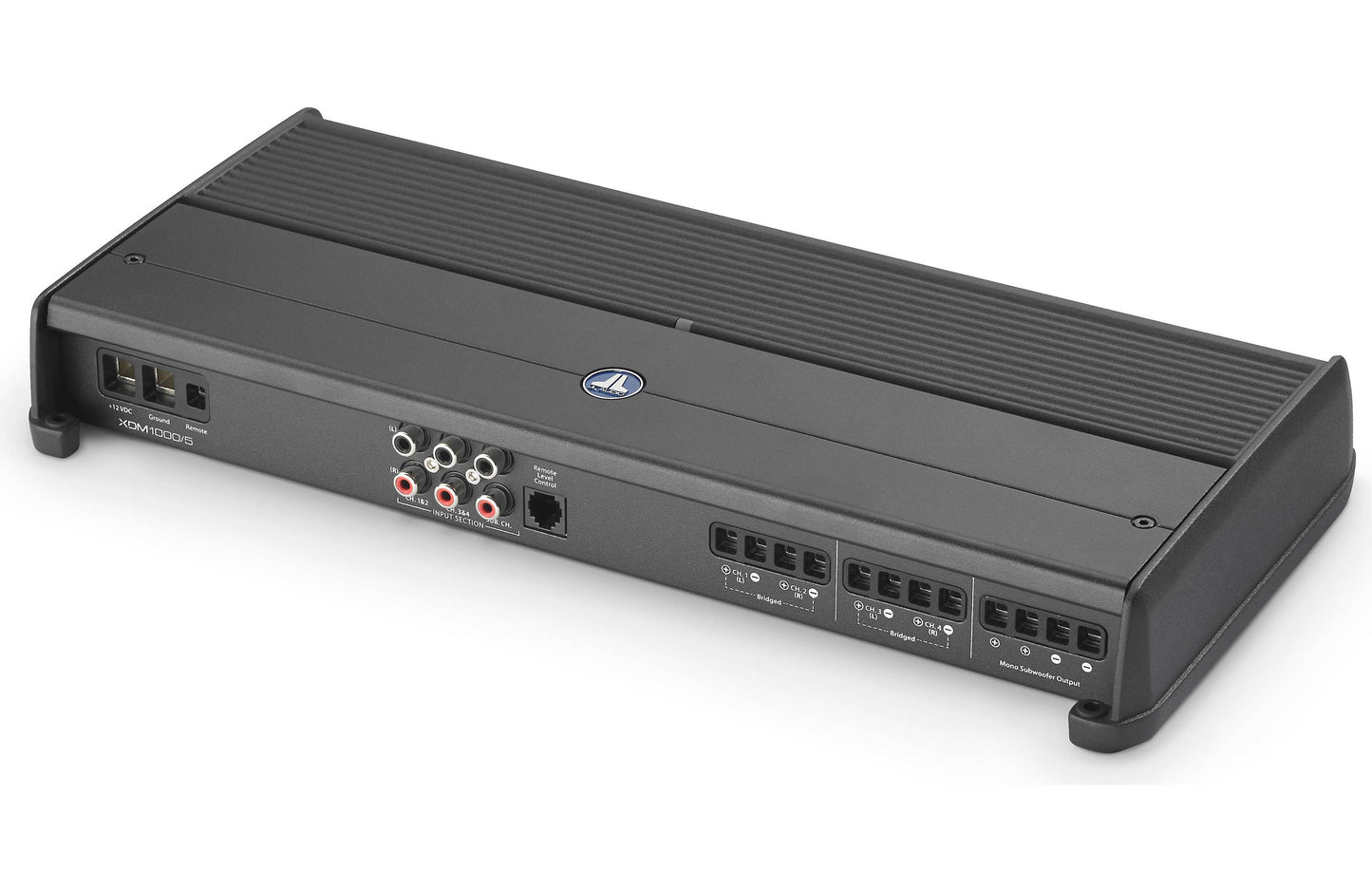

JL AUDIO XDM1000/5 5-channel marine amplifier

Regular price $999.99 USD
Regular price $1,199.99 USD Sale price $999.99 USD
Sale Sold out
Shipping calculated at checkout.

JL Audio's XDM1000/5

The JL AUDIO XDM1000/5 5-channel marine amplifier combines the most popular features from their M Series marine amplifiers and their advanced XD Series car amplifiers. Designed with durable marine-grade materials, it includes a dual-mode power input filter that ensures noise-free operation in both marine and automotive electrical settings. The advanced NexD™ ultra-high-speed and efficient amplifier technology from JL Audio guarantees exceptional sound quality and power without overloading your vehicle's electrical system.

Versatile amp

The JL AUDIO XDM1000/5 5-channel marine amplifier offers impressive power capabilities. With 75 watts RMS to each front and rear speaker and up to 600 watts to a sub, this amp is a top choice for any boat audio system. Additionally, the amp can be switched to 3-channel mode, allowing 200 watts each to two high-performance speakers while still powering a sub with 600 watts. Even for those with 3-way or active speaker systems, the XDM1000/5 has you covered with the ability to high-pass the front channels for tweeters, band-pass the rear channels for mid-range or mid-bass speakers, and low-pass the sub channel for optimal bass.

Works with almost any vehicle's system

This amplifier features "differential-balanced" inputs that effectively filter out external noise and enable compatibility with a wide range of audio systems, including factory installed ones. It also offers two auto turn-on options for speaker-level inputs, making integration with factory systems easier. Additionally, there is an optional wired remote available for controlling the overall volume of the system from the driver's seat or specifically adjusting the bass channel.

Optional Remote Level Control sold separately.

Product highlights:

  • 5-channel car/marine amplifier
    • 75 watts RMS x 4 + 400 watts RMS x 1 at 4 ohms
    • 100 watts RMS x 4 + 600 watts RMS x 1 at 2 ohms
    • 200 watts RMS x 2 bridged at 4 ohms + 600 watts RMS x 1 at 2 ohms
  • Ch 1 & 2: variable high-pass filter (50-500 Hz, 12 dB/octave)
  • Ch 3 & 4: variable high-pass or bandpass filter (50-500 Hz, 12 dB/octave)
  • sub channel: low-pass filter (50-500 Hz, 12 or 24 dB/octave)
  • Class D amplifier design with NextD™ switching amp technology
  • differential-balanced inputs help eliminate noise
  • weather-resistant chassis: black powder-coat finish, gasketed control cover, stainless steel hardware
  • preamp and speaker-level inputs
    • switchable input filter (car/boat) eliminates interference from onboard high-current devices
    • speaker-level inputs handle up to 4Vrms (about 4 watts)
    • speaker-level inputs require Wire-To-RCA Adapters
    • speaker-level inputs feature auto turn-on via DC offset or signal sensing
  • wiring, fuse, and hardware not included with amplifier
    • 4-gauge power and ground leads and an 80-amp fuse recommended
  • 14-1/2"W x 2"H x 7-1/8"D
  • optional wired remote level controller not included ( sold separately )
