Diamond Audio

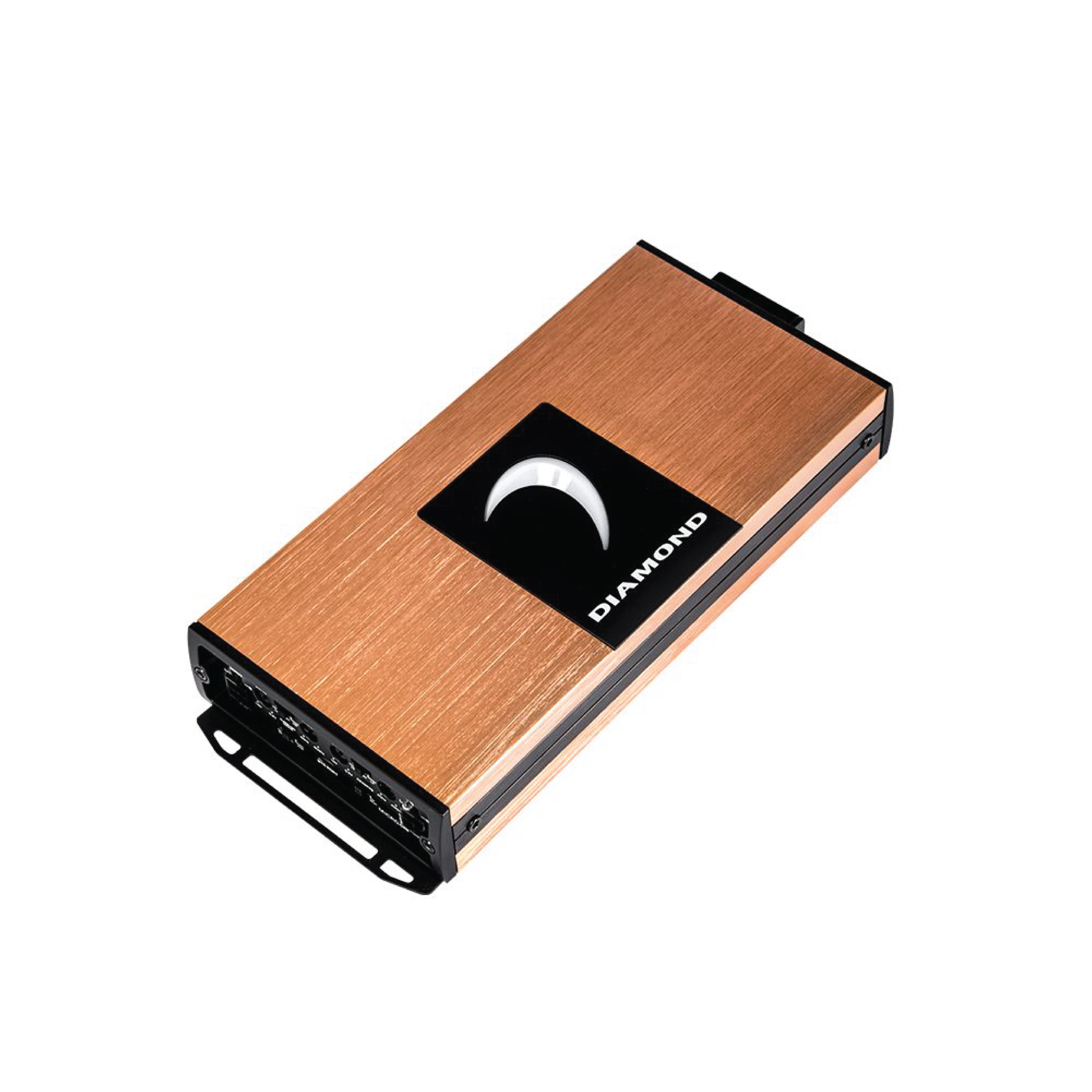

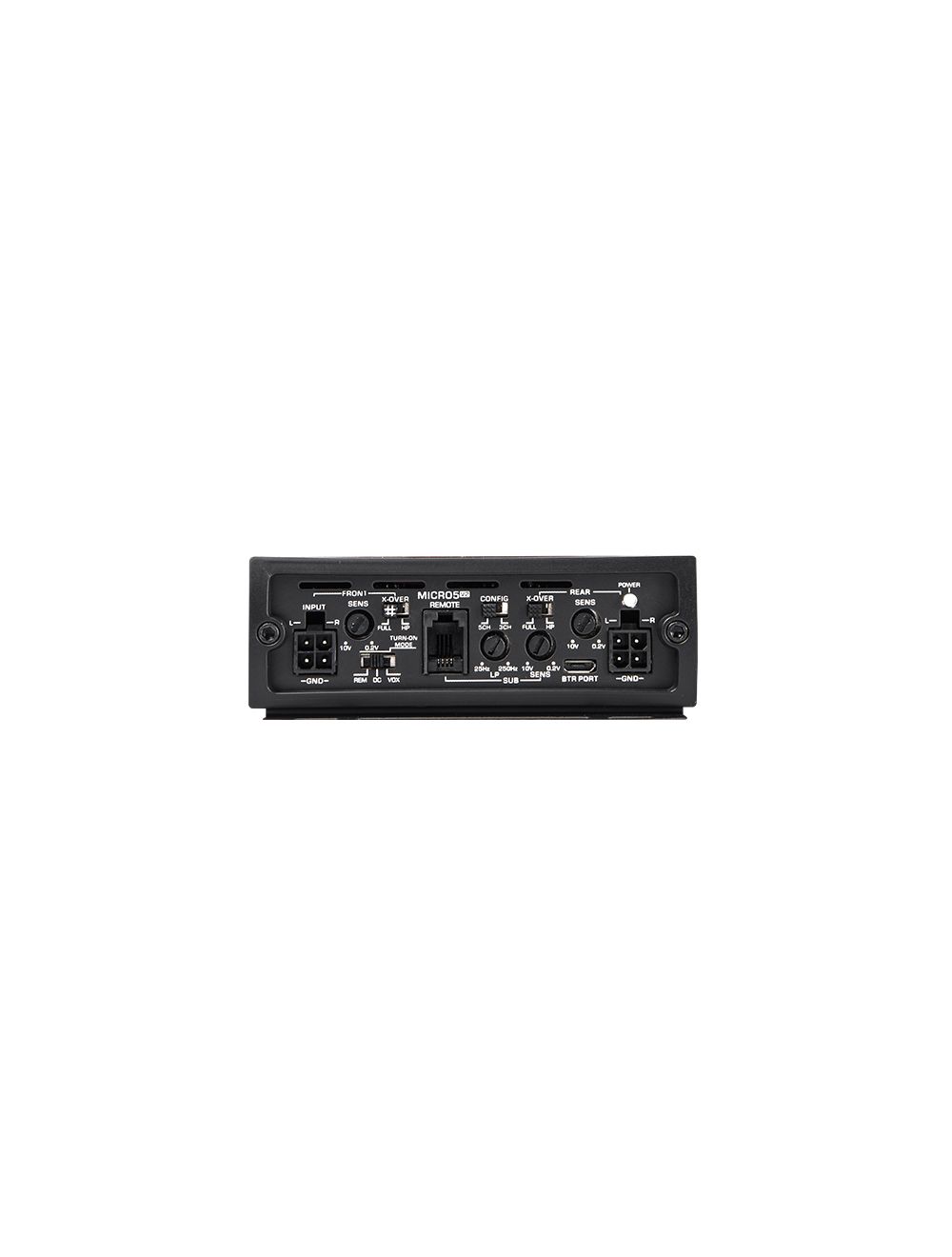

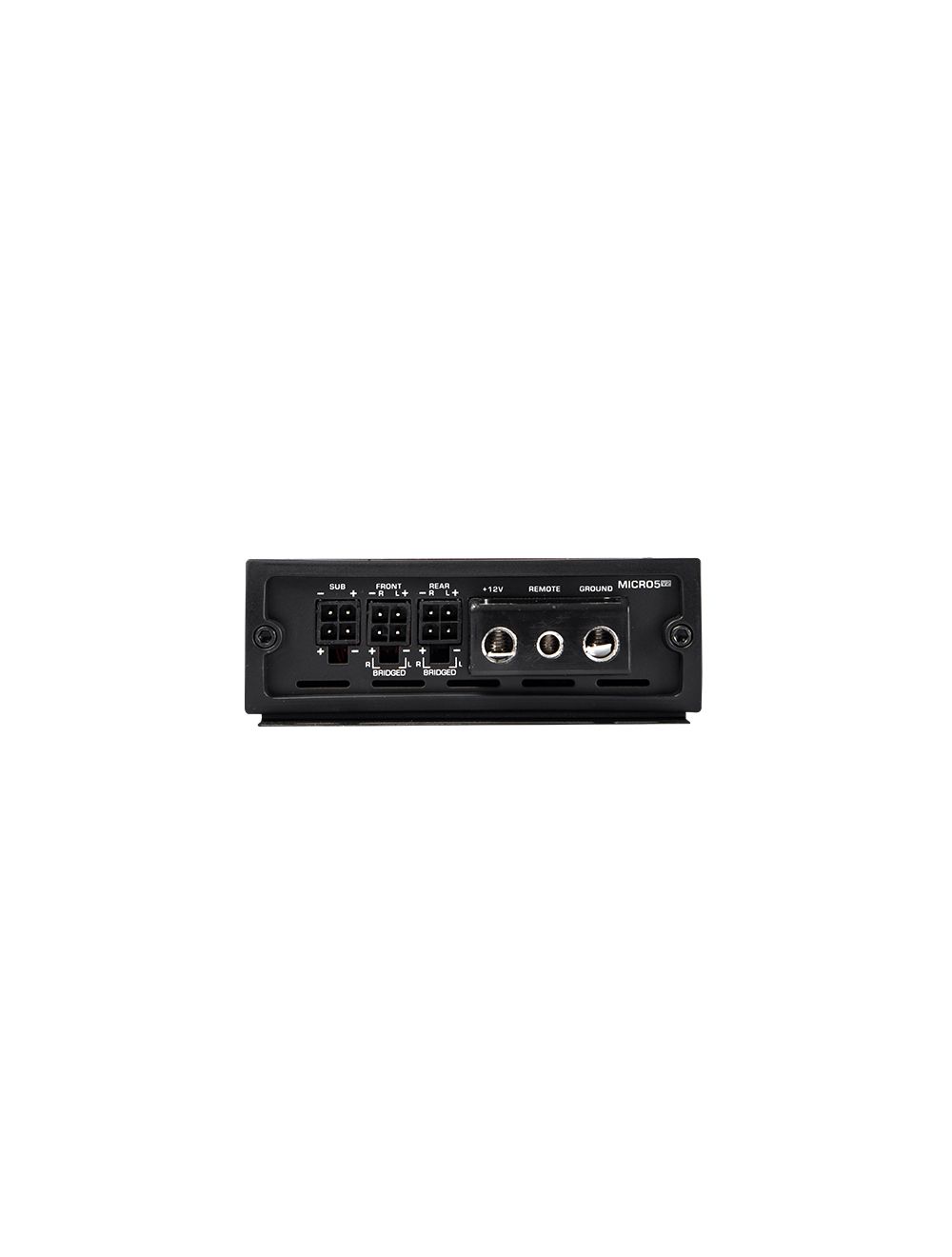

Diamond Audio Micro5v2 5 Channel Amplifier

Regular price $719.00 USD
Regular price Sale price $719.00 USD
Sale Sold out
Shipping calculated at checkout.

Diamond Audio has become a highly coveted premium brand for bikers and powersport enthusiasts. This is a clear indication of Diamond Audio's commitment to creating cutting-edge audio products that revolutionize the way we experience music. By collaborating with expert acoustical and audio engineers, Diamond Audio consistently sets new standards and establishes itself as a pioneer in the mobile audio industry since 1994. The Diamond Audio Micro5v2 5 Channel Amplifier is the perfect choice for motorcycle enthusiasts who demand superior sound quality at both idle and while cruising on the open road.

Features & Specifications:

  • Ultra-compact high density aluminum alloy chassis provides superior thermal stability
  • Four layer, glass circuit board for enhanced performance and reliability
  • Full Range Class D amplifier technology
  • Bridgeable for high power operation (CH1+CH2/CH3+CH4)
  • Balanced differential inputs for superior noise rejection
  • Input sensitivity from 200mV to 10V accepts Line (RCA) and Speaker level input
  • Input selector switch (2CH/4CH)
  • Selectable auto-turn-on modes: Signal Sensing (VOX), 12V Remote (REM) and DC offset (DC)
  • Fully variable, 12dB per octave, electronic crossovers
  • Remote level control for Mono channel (CH5) included
  • Built-in BTR Port (MICRO-USB) to connect our optional Bluetooth receiver-controller
  • Illuminated logo

Specifications:

  • RMS Power Rating:
    • RMS Power (2Ω): 150W x 4/350W x 1
    • RMS Power (4Ω): 80W x 4/200W x 1
    • Bridged (mono 1Ω): N/A
    • Bridged (mono 2Ω): N/A
    • Bridged (mono 4Ω): 300W x 2/200W x 1
  • Topology: Full Range Class D
  • Power Supply:
    • Power Supply: Full PWM
    • Power Supply Threshold: 10.0VDC - 17.0VDC
    • Idle Current: (0.7A)
  • Distortion:
    • THD 4 (1KHx @ 4Ω): 0.5%
    • S/N Ratio (A weighted @1W): -85dBA
    • S/N Ratio (A weighted @FP): -101.1dBA
  • Input Sensitivity:
    • Low Input Level: 200mV - 10.0V
    • High Input Level: N/A
  • Input Impedance:
    • Low Input Level: 20KΩ
    • High Input Level: 20KΩ
  • Output Stage:
    • Output Impedance: 0.018Ω
    • Damping Factor (50Hz@4Ω): >70
    • Bandwidth (-3dB): 10Hz - 35Hz
  • Crossover (-12dB/Oct):
    • Variable High-Pass: Flat or Fixed 70Hz
    • Variable Low-Pass: 40Hz - 400Hz
    • Variable Sun-Sonic: N/A
  • Fuse Ratings:
    • ATC: 60A
    • Dimensions: 10.65” L x 4.0” W x 1.46” H
