Diamond Audio

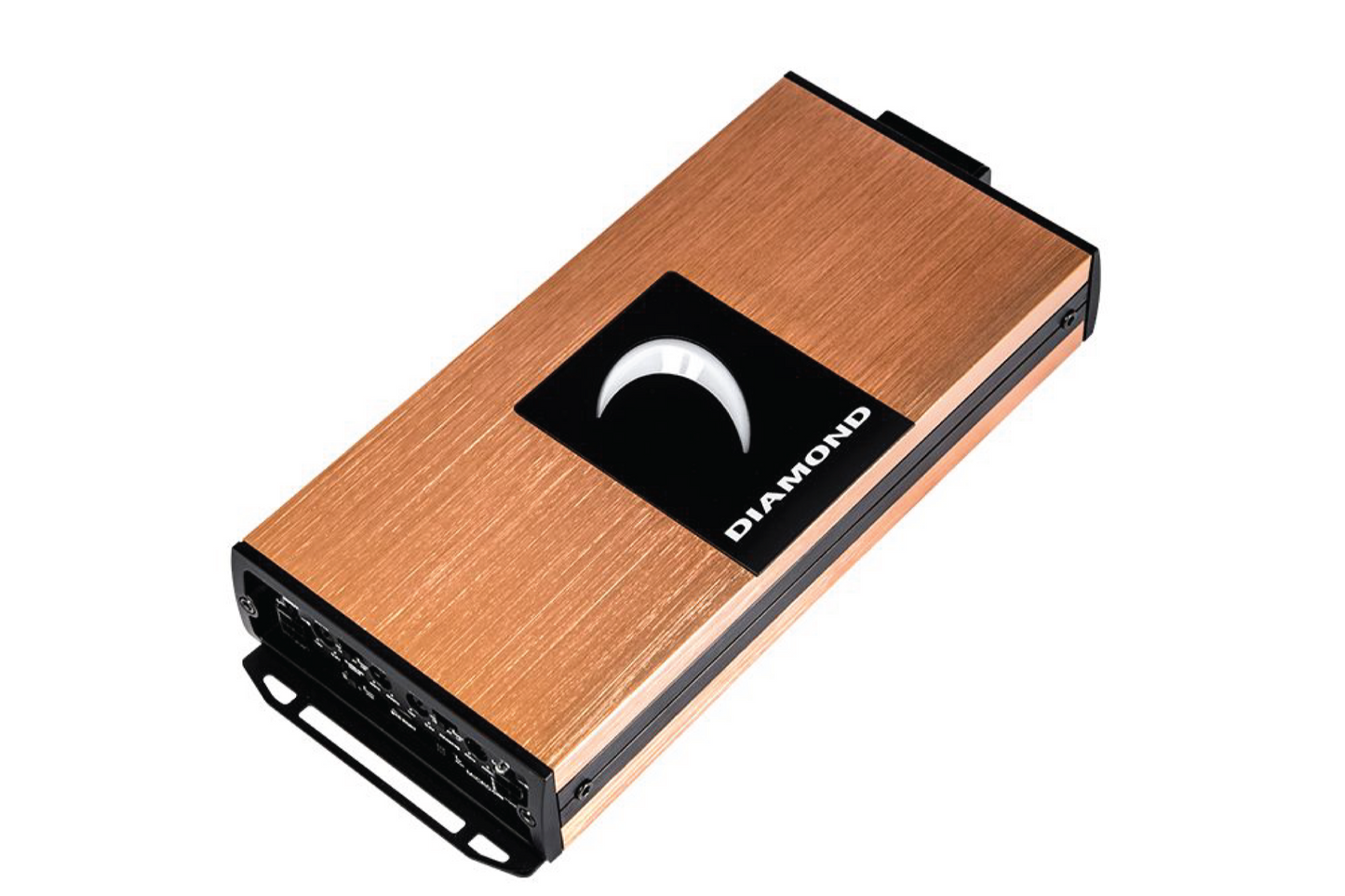

Diamond Audio Micro4v2 4 Channel Amplifier

Regular price $469.00 USD
Regular price Sale price $469.00 USD
Sale Sold out
Shipping calculated at checkout.

Product Details:

  • 4-Channel Micro Class-D Amplifier
  • Power Output:
    • 80W RMS x 4 @ 4Ω
    • 150W RMS x 4 @ 2Ω
    • 300W RMS x 2 @ 4Ω Bridged
  • Ultra-compact, high density aluminum alloy chassis provides superior thermal stability
  • Four layer, glass epoxy circuit board for enhanced performance and reliability
  • Full Range Class D amplifier technology
  • Bridgeable for high power operation (CH1+CH2/CH3+CH4)
  • Balanced differential inputs for superior noise rejection
  • Input sensitivity from 200mV to 10V accepts Line (RCA) and Speaker level input
  • Input selector switch (2 CH / 4 CH)
  • Selectable auto-turn-on mode: Signal Sensing (VOX), 12V Remote (REM) and DC offset (DC)
  • Fully variable, 12dB per octave, electronic crossovers
  • Built-in BTR Port (MICRO-USB) to connect our optional Bluetooth receiver-controller
  • Illuminated logo
  • Fully variable, 12dB per octave, electronic crossover
  • Variable 18dB per octave sub-sonic filter
  • Adjustable Bass EQ (45Hz: 0dB to +12dB)
  • Wired Remote Level Control included
  • Illuminated logo
  • THD: 0.5%
  • S/N Ratio (A weighted @ 1W): -85dBA
  • Low Input Level: 200mV - 10.0V
  • Bandwidth(-3dB): 10Hz - 35Hz
  • Variable High-Pass: 40Hz - 400Hz
  • Variable Low-Pass: 40Hz - 400Hz
  • Fuse Ratings - ATC: 40A
  • Dimensions: 9.07"L x 4.0"W x 1.46"H
