Audiocontrol EPICFIVE 5-Channel Class-D Amplifier

Audiocontrol EPICFIVE 5-Channel Amplifier

Compact, power-packed, and affordable

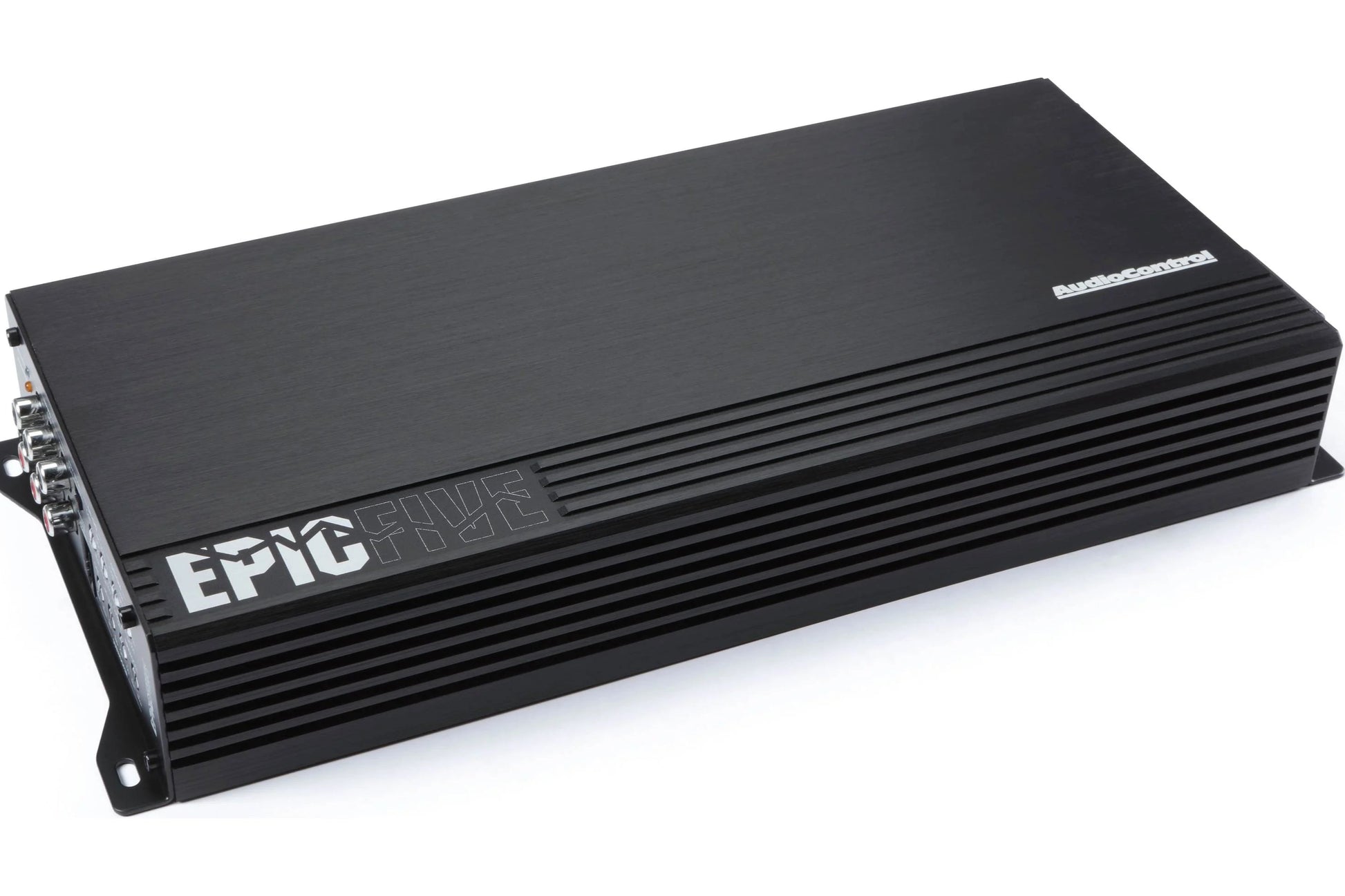

AudioControl's EPICFIVE 5-channel amplifier delivers more power per square inch and watts per dollar than most other car amplifiers on the market. This 5-channel amp uses Class D technology to punch above its weight, sending out four channels of 75 watts plus one channel of up to 700 watts to make your speakers and subwoofer sing out loud and clear with minimal stress to your car's electrical system. All this power is packed into a rugged, compact amp that'll fit in a lot of different spaces in a lot of different vehicles.

System versatility

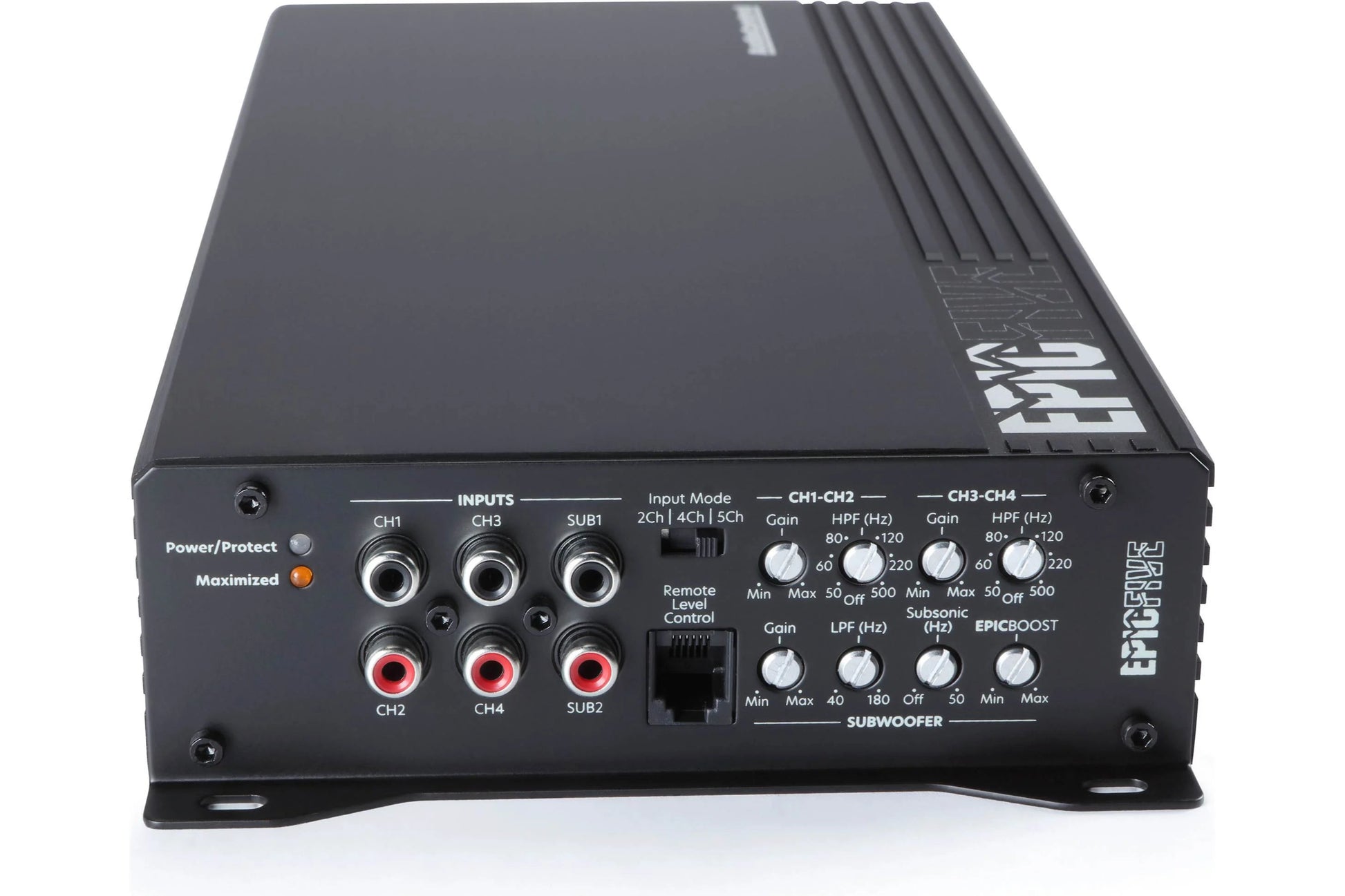

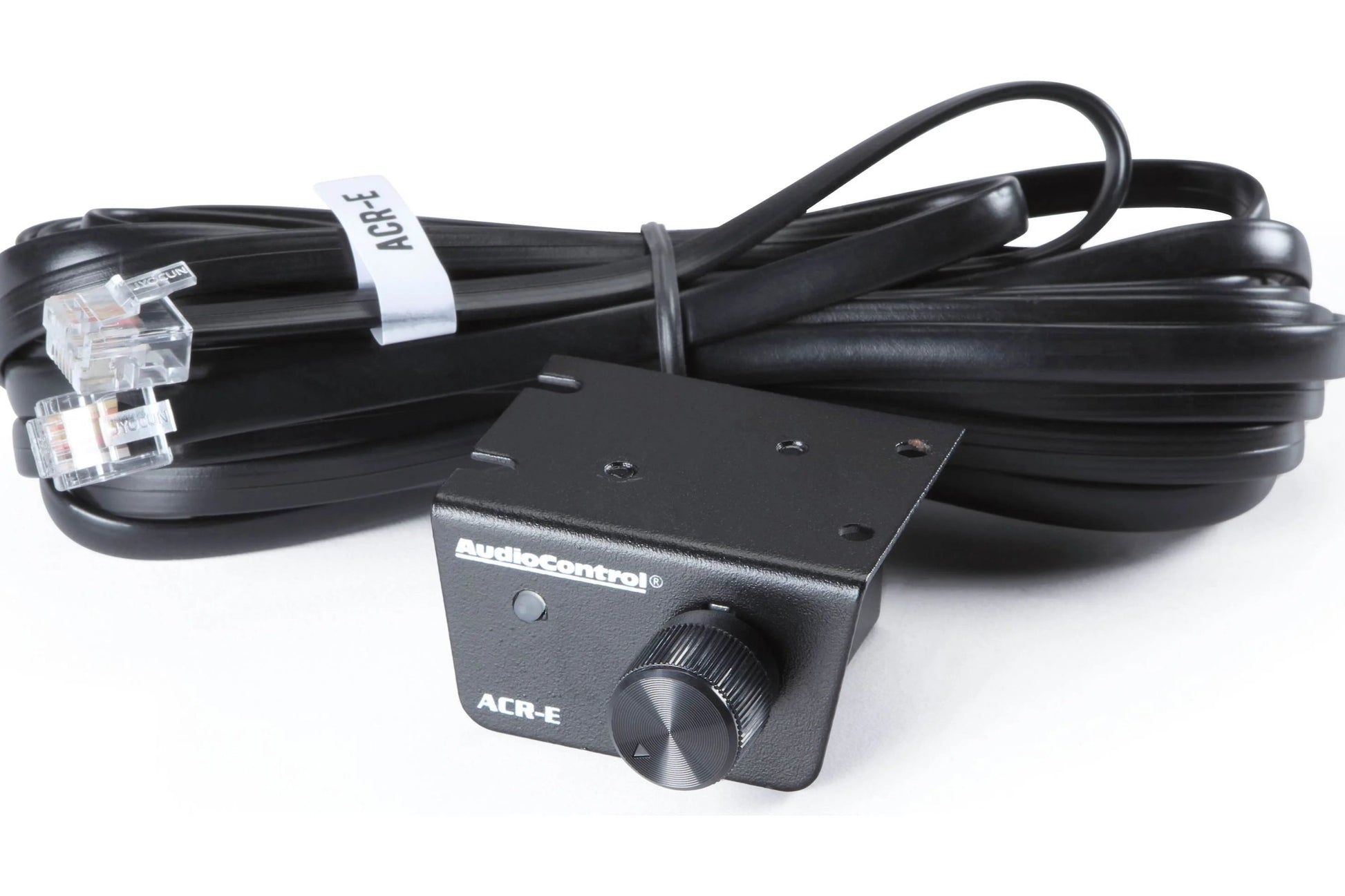

The EPICFIVE can power a pair of high-performance speakers with 150 watts RMS each from bridged channels plus a sub with 700 watts for big front-stage stereo sound. High-pass crossover filters eliminate unwanted low-frequencies from the full-range speakers. The subwoofer channel features low-pass and subsonic crossover filters to eliminate unwanted high- and ultra-low-frequencies from the mix, a tunable bass boost for extra oomph, and a wired remote control so you can fiddle with the bass volume from your front seat. The amp has preamp inputs only, so you'll need a line output converter or a similar device like an EPICENTER to connect to a factory system if you're not using an aftermarket radio with RCA outputs.

Made for THE EPICENTER®

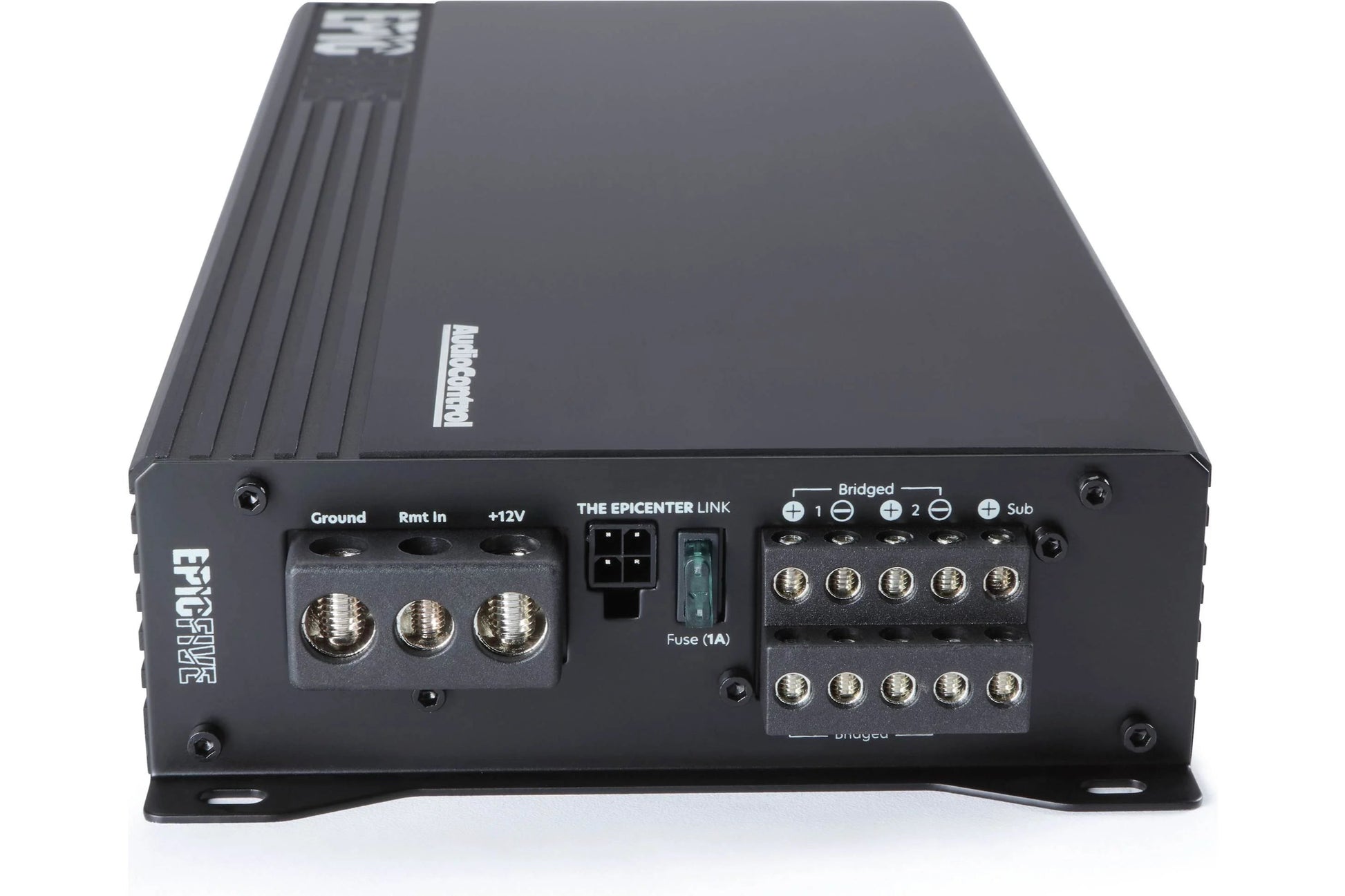

For ultimate bass sound and connectivity, the EPICFIVE includes a power and ground connection harness that'll work with AudioControl's EPICENTER bass enhancers, as well as with their other line output converters that take factory speaker-level signals and make them suitable for the amp's input.

Product highlights:

• 4-channel car amplifier
  • 100 watts RMS x 4 at 4 ohms
  • 200 watts RMS x 4 at 2 ohms
  • 400 watts RMS x 2 bridged at 4 ohms
• Class D amp technology
  • frequency response: 10-22,000 Hz
• variable high-pass filters (Off/50-500 Hz, 12 dB/octave)
• preamp inputs only
• wiring, fuse, and hardware not included with amplifier:
  • 4-gauge power and ground leads and an 80A fuse recommended
• dimensions: 9.42"W x 2.01"H x 6.09"D
